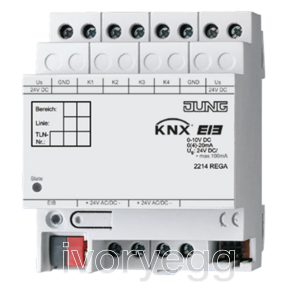

KNX analog input, 4-gang
JUNG 2214REGA

KNX analog input, 4-gang

Product code: 2214REGA
Connects generic devices such as pressure or air quality sensors with an analogue output to a KNX system.
Price (Excluding VAT)
£207.86

Description

The analogue input processes measured-value data supplied by analogue sensors. Four analogue transducers in any combination can be connected to the input. The analogue input evaluates voltage and current signals.

  • Voltage signals: 0 ... 1 V DC 0 ... 10 V DC
  • Current signals: 0 ... 20 mA DC 4 ... 20 mA DC

The 4 ... 20 mA current inputs can be monitored for open-circuit conditions. The analogue input needs a separate power supply.

Technical Details

Specification

KNX medium: TP 256
Supply voltage: AC 24 V ~ ± 10 %
Analogue inputs: 4
    Format: EIS 5 (2 Byte) or EIS 6 (1 Byte)
    Ranges: voltage 0 ... 1 V, 0 ... 10 V; current 0 ... 20 mA, 4 ... 20 mA;depending on parameterisation
    Limit values: 2 per channel
Supply output for sensor: 2 terminal pairs
    Voltage: DC 24 V ± 25 %
    Total current: max. 100 mA

Properties

Properties

Technology KNX
Brand JUNG
Mounting DIN Rail
Operating voltage KNX Bus (29VDC)
Mounting Width 4MW
