BASALTE 0180-23

Auro motion detector - Cresnet - black

Product code: 0180-23

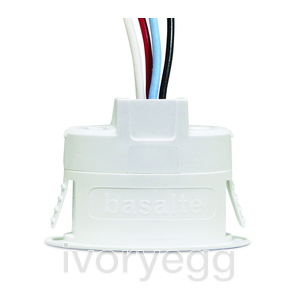

The Auro is a miniature motion detector, which connects directly to the Cresnet® bus without external interface. Auro has an external diameter of 52 mm, the inside fitting diameter is 43 mm with an installation depth of only 39 mm.
Price (Excluding VAT)


The detection range of Auro is set for residential applications. Horizontal reach is 360°, while the vertical reach attains 90°. If installed at height of 2.5 m, Auro has a detection range with a diameter of approximately 5 m. Maximum detection height is 5m.

Auro contains a built-in light sensor that can be used as an individual lux meter, the temperature sensor can be used for home automation.

An incorporated led allows the Auro to light up with every movement but can also be used as a nightlight.

Technical Details


Cresnet® power usage: 0.15 W

Ambient Temperature:

Operation: -5°C to 45°C
Storage: -15°C to 55°C
Transport: -15°C to 55°C

Environment: the device is designed for use up
to 2000m above sea level (MSL).

Max. humidity: 93% relative humidity, no moisture condensation

Protection class: II

Type of protection: IP 20
Certification: CE



Technology Cresnet
Colour/Material Black
Finish Black
Mounting Flush
Operating voltage CRESNET Bus (24VDC)
HVAC support Temperature Sensing
Buscoupler Integrated
