DM 4 T KNX   4 x 400W Dimmed channels
Zoom
THEBEN 4940275

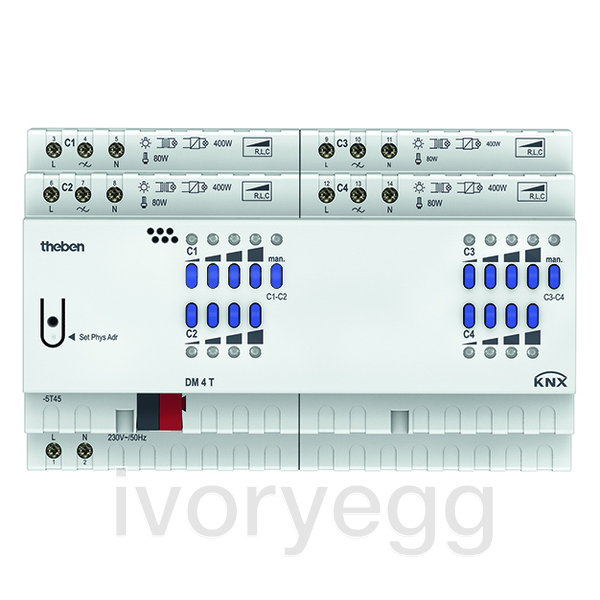

DM 4 T KNX 4 x 400W Dimmed channels

Product code: 4940275
4-way universal dimmer actuator. For dimming dimmable LED, incandescent lamps, LV, HV halogen lamps and energy saving lamps - Dimming output: 400 W/VA per channel or 800 W/VA in parallel operation
Price (Excluding VAT)
£450.52

Description

  • 4-way universal dimmer actuator FIX2
  • For dimming dimmable LED, incandescent lamps, LV, HV halogen lamps and energy saving lamps
  • Also suitable for dimming of dimmable energy-saving lamps
  • Also suitable for controlling fans
  • LED switching status display for each channel
  • Manual operation on device (even without bus connection)
  • Dimming output: 400 W/VA per channel or 800 W/VA in parallel operation
  • Automatic load detection (can be deactivated)
  • For R, L and C load

The dimming output can be upgraded by using additional dimmboosters “DMB 1 T KNX.”

When dimming LEDs - dimming output is increased by 45 W/VA for each dimmbooster.  Output up to a maximum of 980 W/VA is possible by using the maximum of 4 boosters together with 2 dimmer channels joined in parallel operation mode.

When dimming incandescent lamps, halogen lamps, inductive loads or electronic transformers - dimming output is increased by 300 W/VA for each dimmbooster.  Output up to a maximum of 2000 W/VA is possible by using the maximum of 4 boosters together with 2 dimmer channels joined in parallel operation mode.

It is not possible to use dimmboosters with dimmable energy saving/Compact Fluorescent lamps.

Technical Details

Specification

  • Operating Voltage: 230VAC 50HZ
  • Power Consumption: 1.5W
  • Bus Voltage: KNX Bus 21...30VDC
  • Bus Current Consumption: 4mA
  • Outputs: 4
  • Dimming Capacity Per Channel: 400W
  • Dimming Capacity in Parallel Operation: 800w
  • Dimming Capacity Dimmabte Energy Saving Lamps: 80W
  • Dimming Capacity in Parallel Dimmabte Energy Saving Lamps: 140w
  • Dimming Capacity in Parallel 230V LEDs Leading Edge Control (L): 120W
  • Dimming Capacity 230V LEDs Leading Edge Control (L): 60W
  • Dimming Capacity in Parallel 230V LEDs Trailing Edge Control (RC): 800W
  • Dimming Capacity 230V LEDs Trailing Edge Control (RC): 400W
  • Dimming Capacity Minimum: 5W

Properties

Properties

Technology KNX
Brand THEBEN
Mounting DIN Rail
Operating voltage 230VAC
Outputs 4
IP rating IP20
Mounting Width 8MW
