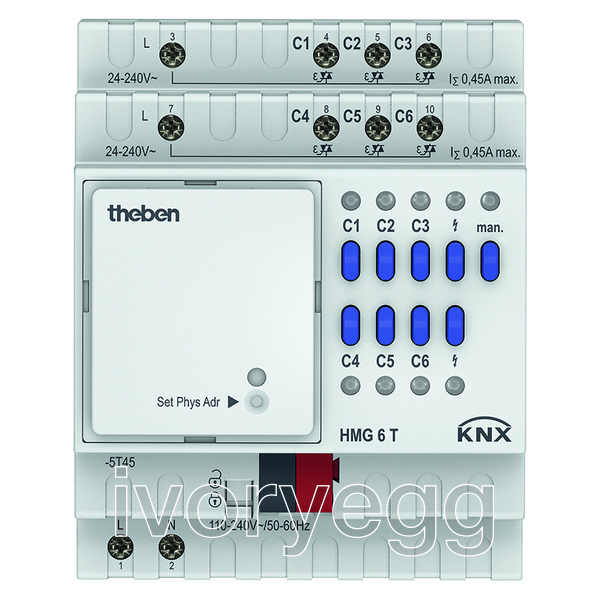

HMG 6 T KNX
Zoom f088bb68c4585fed2ff9ec03970eee307fd355241f33101dad7edd4f92b5fd6e
THEBEN 4930240

HMG 6 T KNX

Product code: 4930240
The MIX2 series is a range of devices consisting of basic modules and extension modules. Up to 2 MIX or MIX2 extension modules can be connected to a basic module of this series. A wide range of functions can be controlled including Dimming, Switching, Heating, Binary Inputs and Blind Actuators.
Price (Excluding VAT)
£210.01
checking stock

Description

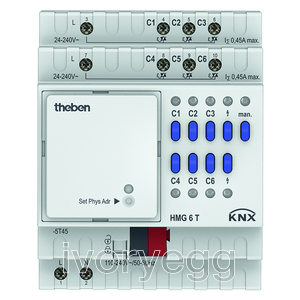

  • 6-way heating actuator MIX2
  • With 6 temperature controllers (P/PI) for heating and cooling
  • Base module MIX2
  • Can be upgraded to maximum of 18 channels
  • For controlling 6 thermal actuators 24V-240V in 2 groups each with 3 outputs and 450 mA each
    • ( Due to the switch-on behaviour of the actuators, we recommend not to exceed a maximum load of 3 x 1 actuators 24VAC or 3 x 5 actuators 230VAC)
  • Short-circuit-proof and overcharge protected
  • Continuous or switching actuating value selectable
  • Valve protection function can be deactivated
  • With the modes: comfort, standby, night as well as frost/heating protection
  • Changeover to summer mode possible
  • Up to two extension modules MIX or MIX2 can be connected to one base module
  • Device and KNX bus module can be swapped independently of each other
  • Removable KNX bus module enables devices to be changed without reprogramming
  • Manual set-up and use of actuator is possible without KNX bus module
  • LED switching status display for each channel
  • Manual operation on device (even without bus connection)

Technical Details

Specification

  • Operating Voltage: 110 - 240 VAC
  • Power Consumption: 0.3W
  • Bus Voltage: KNX Bus 21...30VDC
  • Bus Current Consumption: 4mA
  • Outputs: 6 (2 Groups of 3)
  • Type of Output: Triac,
  • Output Rated Voltage: 24VAC - 240VAC
  • Current Rating: 0.45 A
  • Suitable for SELV: Yes, if all inputs are connected with SELV

Properties

Properties

Technology KNX
Brand THEBEN
Mounting DIN Rail
Operating voltage 230VAC
Outputs 6
HVAC support Regulation
IP rating IP20
Mounting Width 4MW
