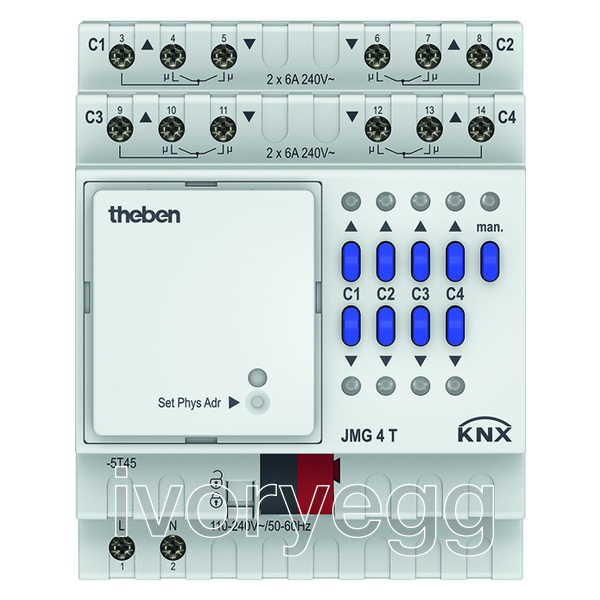

JMG 4 T KNX

Product code: 4930250
The MIX2 series is a range of devices consisting of basic modules and extension modules. Up to 2 MIX or MIX2 extension modules can be connected to a basic module of this series. A wide range of functions can be controlled including Dimming, Switching, Heating, Binary Inputs and Blind Actuators.
Price (Excluding VAT)
£244.78
checking stock

Description

  • 4-way blind actuator MIX2
  • Base module MIX2
  • Can be upgraded to maximum of 12 channels
  • For controlling drives for blinds, shutters, sun and vision protection devices, skylights and ventilation flaps
  • Up to 2 extension modules can be connected to a base module
  • Up to two extension modules MIX or MIX2 can be connected to one base module
  • Device and KNX bus module can be swapped independently of each other, Removable KNX bus module enables devices to be changed without reprogramming
  • Manual set-up and use of actuators is possible without KNX bus module
  • Free combination of switches, dimming, blinds and heating control as well as binary inputs
  • For controlling drives for blinds, shutters, sun and vision protection devices, skylights and ventilation flaps
  • Manual operation on device (even without bus connection)
  • LED Up and Down switching status display for each channel
  • Potential-free contacts for Up and Down per channel
  • Setting option for phase sequence and running time of device
  • Copy function for fast configuration

Technical Details

Specification

  • Operating Voltage: 110 - 240 VAC
  • Power Consumption: 0.3W
  • Bus Voltage: KNX Bus 21...30VDC
  • Bus Current Consumption: 4mA
  • Outputs: 4 (Up/Down per Channel)
  • Output Rated Voltage: 240VAC
  • Type of Contact: NO contact, Potential Free
  • Current Rating: 6A

Properties

Properties

Technology KNX
Technology KNX
Brand THEBEN
Mounting DIN Rail
Operating voltage 230VAC
Outputs 4
IP rating IP20
Mounting Width 4MW
